Products

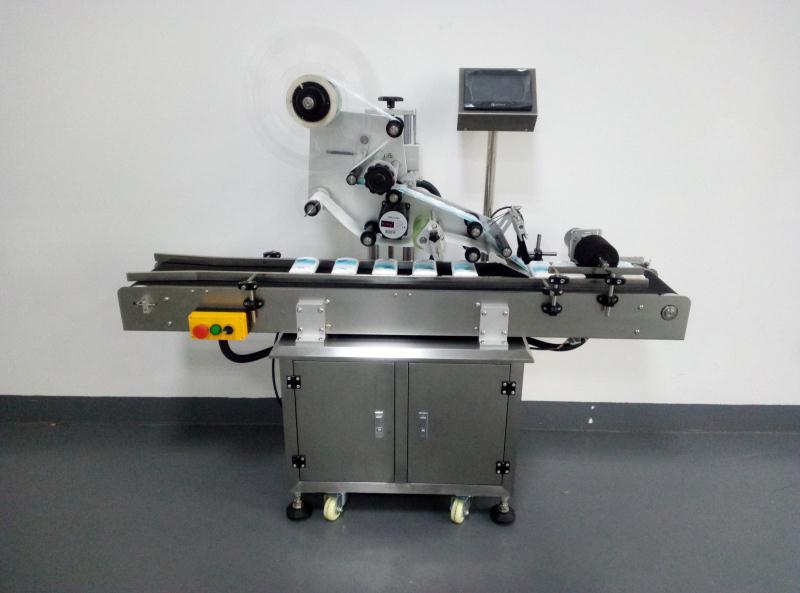

Automatic top labeling machine

Previous: Next: Automatic Top and Bottom Labeling Machine

Model: BGJ-P220

Categories: Adhesive Labeling Machine » Automatic Flat Labeling Machine »

Description:

1.All machines are made of SUS304 stainless steel
2.It can be equipped bottle feeding table
3.It avoid many problems of labor labeling, skew labeling, bubble, wrinkle, irregular labeling etc
4.It equips electric-eye to improve the precision for cutting off the label materials.
5.It adopts equivalent PLC, positioning module, stepping motor and sensor electrical control system control.

Technical Parameters

Labeling Precision	±1mm (exclude the product label deviation)
Labeling speed	0-80pcs/min (its up to product size)
Applicable Product Size	20≤W≤150mm，L≥15mm
Applicable Label Size	15≤W≤150mm, L≥10mm
Machine Size	L1500W550H900mm
Power	220V 50/60HZ
Weight	300KG
